Standard Bucket Capacity | 0.7 cu-ft | Auxiliary Std Flow | 5.7 gal/min |
Standard Bucket Width | 15 in | Max. Tractive Force | 3035 lbf |
Max. Travel Speed | 0.75 mile/h | Arm Digging Force | 1191 lbf |
Slewing Speed | 11 rpm | Bucket Digging Force | 1619 lbf |
Max. Gradeability | 30° | Rated Lift Capacity | 728 lb |
Track Ground Pressure | 5.1 psi | Lift Radius | 80 in |
Hydraulic Oil Tank Capacity | 3.96 gal | Operating Weight | 2280 lb |
Operating Range | |||
Max.Digging Radius On Ground | 119 in | Max. Vertical Digging Depth | 63.3 in |
Max. Digging Depth | 65.7 in | Min. Turning Radius | 46.8 in |
Overall Operating Height (Fully Raised) | 111.8 in | Max. Lifting Height Dozer Blade | 5.9 in |
Max. Digging Radius | 121 in | Max. Depth Dozer Blade | 7.4 in |
Max. Unloading Height | 81.8 in | ||

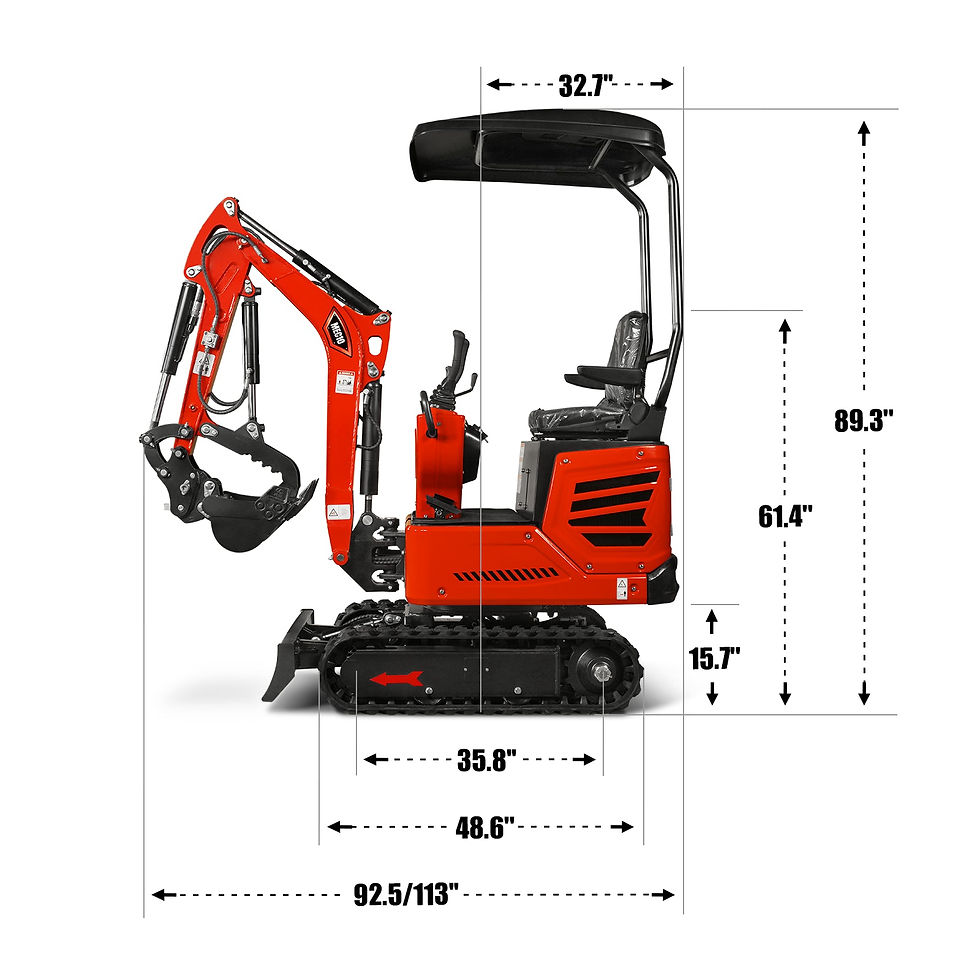

Main Dimensions | |||
Wheel Track | 35.8 in | Track Height | 12.6 in |
Track Length | 48.6 in | Transportation Length | 92.5/113 in |
Upper Chassis Ground Clearance | 15.7 in | Height Of Seat To Ground | 61.4 in |
Counterweight Turning Radius | 32.6 in | Overall Height | 89.3 in |
Chassis Width | 36 in | Boom Swing-Right | 40° |
Track Width | 7 in | Boom Swing-Left | 53° |
Engine | |||
Model | Honda GX390 | Max. Net Torque | 26.5 N.m/2500 RPM |
Displacement | 389 cc; 11.7 HP | Fuel Tank Capacity | 1.6 gal |
Engine Type | 4-stroke, overhead valve, single cylinder | Engine Oil Capacity | 0.3 gal |
Start Type | Electric start | Engine Oil Type | 10W-30 |
Rated Power | 8.7 KW/3600 RPM | Warranty | 1 Year |
Package | |||
Package Method | Plywood Case | Weight (N.W./G.W.) | 2100/2376 lb |
Dimensions | 91x40x98 in |
