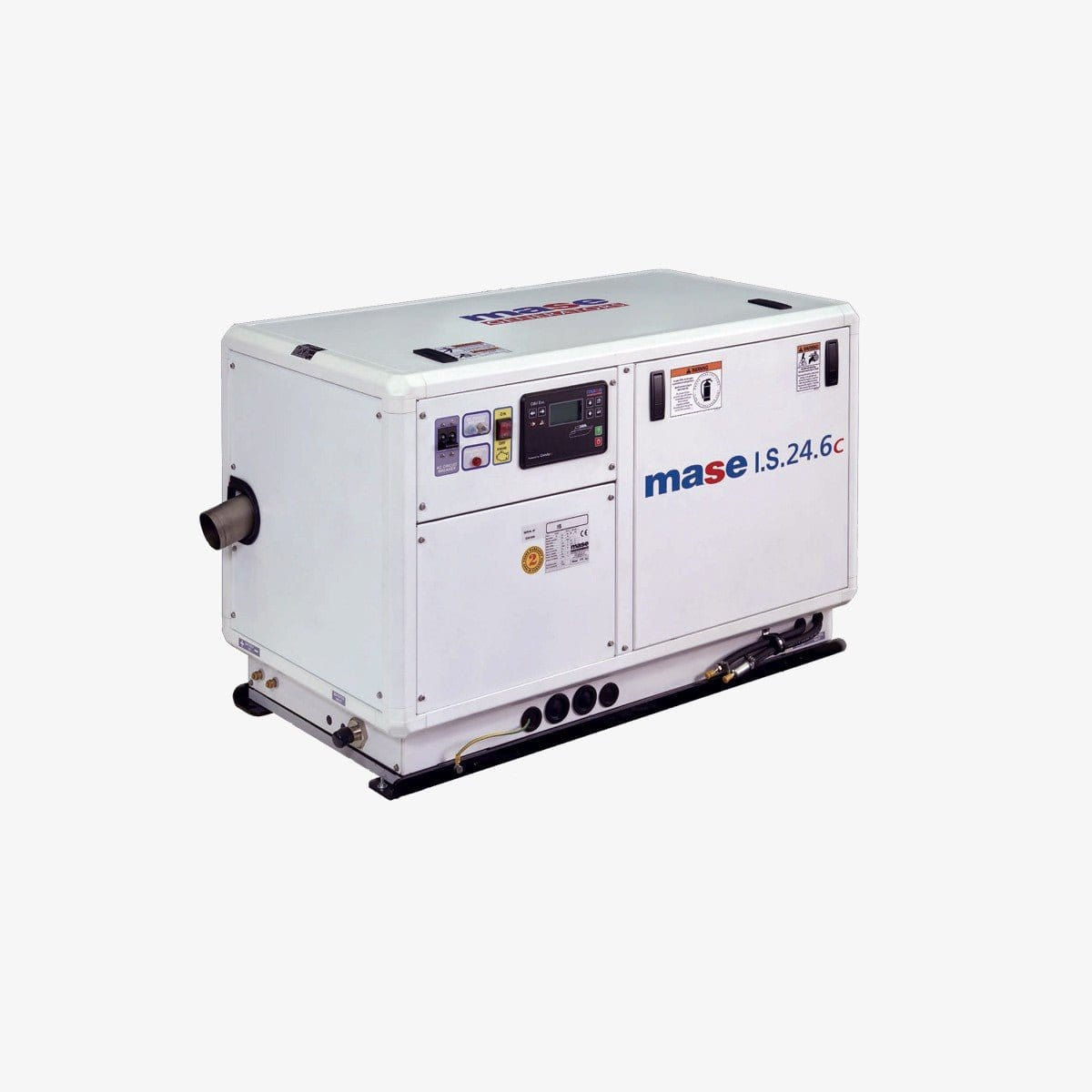

Description

• Marine power generator

• Silenced version

• Diesel engine 1800 rpm

AC generator - 60Hz

• Type: synchronous, 4 poles, self-excited,

• Max. current (A): 200 - 100

brushless, with AVR

• Power factor: cos ф 1

• Cooling: Air/water (Intercooler W/A)

• Voltage stability: ±1%

• Max. power: 24 kW

• Frequency stability: ±2%

• Voltage (V): 120 - 240

Diesel Engine

• Type: Kubota V2403 - 4 cyl. - 39,8 hp (29,6

air filter

1800 rpm

kWm) - 2434 cc - 148,5 cid

• Safety stop in case of low oil pressure

• Starting system: electric (12Vdc)

• Safety stop in case high water temperature and

• Fuel consumption @ 100%: 6,5 lt/h - 1,7 gal/h

high exhaust gas temperature

• Easy access in case of maintenance of feeding

• Oil filter and fuel filter easy to replace

system, lubrication system, sea/water pump and

• Quick access to seawater pump

Standard Features

• Controller with digital display for full

short circuit, high and low voltage, high and

monitoring of generator parameters: manual

low frequency, high and low rpm, alarms

start, Vac voltage, frequency Hz, power,

history, maintenance warning

amperage, engine rpm, hourmeter, genset

--

Other features: direct ECU communication via

battery voltage, engine oil pressure, low

CAN line, possibility to disable all protections

oil pressure alarm, engine temperature,

(emergency mode operation), automatic

engine pre-heating, high engine temperature

start for low battery voltage level, possibility

warning and shutdown alarm, high alternator

for a Start/Stop remote switch (AUT mode),

temperature warning and shutdown alarm,

possibility to have multiple remote devices

alternator battery charger failure alarm, inverter

• Emergency stop button

failure alarm, protection alarm for Overload,

• Thermal and magneto-thermal protection

Accessories

• Siphon break

• Remote START/STOP panel (20 mt cable)

on request

• Filter kit

• Remote start panel with display (20 mt cable)

• Exhaust kit

• Insulated two poles kit

• Separator and exhaust advice

Noise level

•

49 dBA @ 7mt - 23 ft

Other features

• Insulation Class: H

• Water pump flow: 20 lt/min - 5,3 gal/min

• Ambient temperature: 40 °C - 104 °F (*)

• Cooling system: cupronickel exchanger (heat

• Altitude: 1000 mt - 3281 ft (*)

exchange between coolant liquid and sea

• Mechanical Protection: IP 23

water)

• Dimensions (L x W x H): 1115 x 585 x 730 mm -

• Soundproof cabin made of extremely light

43,9 x 23 x 28,7 in

marine aluminum with very high resistance to

• Dry weight: 475 kg - 1048 lb

external agents

• Max. inclination: 30°

(*) - For altitude and temperature values other than those listed above, please consult the manufacturer to verify the

available power.
