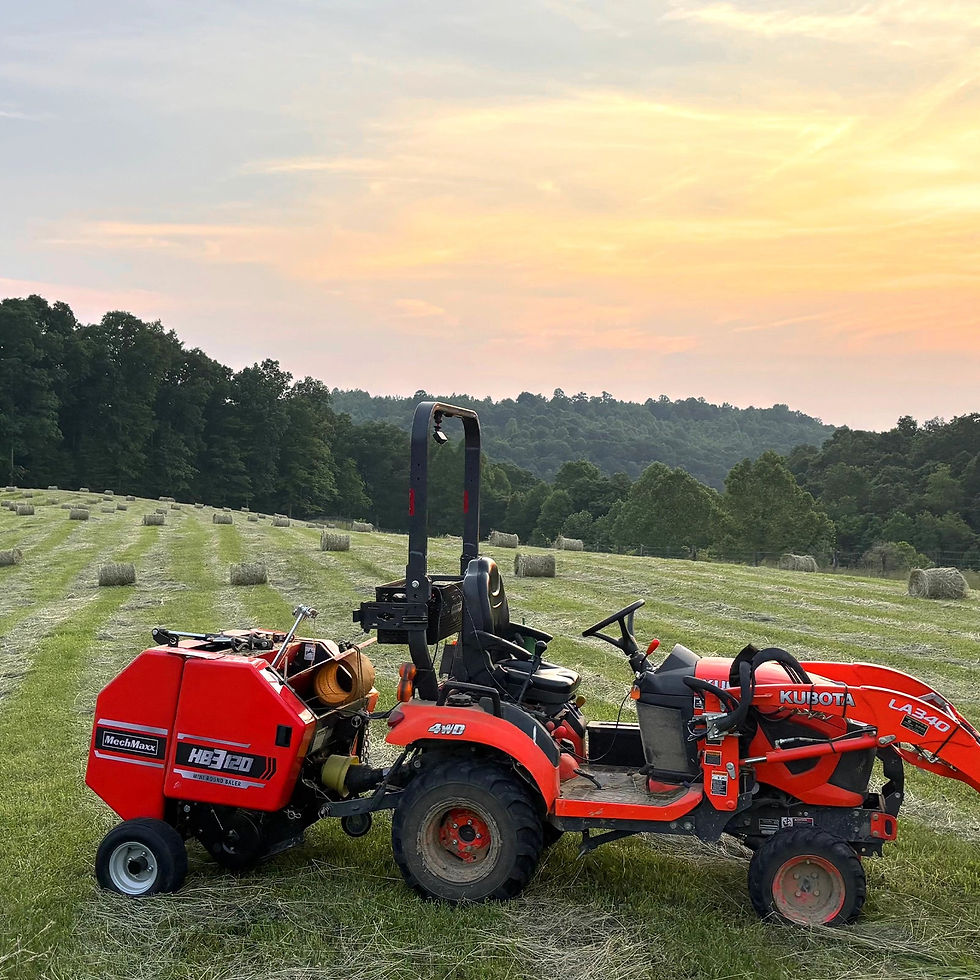

Hay Baler HB3120
Power Required | 15-50 Hp |
Minimum Tractor Weight | 1500 lbs |
Bale Size （Diameter X Width） | φ20 X 28 in |
Bale Weight | 30 - 50 lbs |
Overall (L x W x H) | 45 x 51 x 47 in |
Pickup Width | 31.5 in |
Efficiency | 1.24-3.11 mi/h |
Capacity | 80 - 100 Bales / Hour |
Bale Wrapping | Twine Wrap |
Hydraulics | Independent Hydraulic Power Unit, No Need Tractor Hydraulics |
Electrical | Aviation Plug, Easy To Connect With Tractor |
Tire Size | 16 x 6.5 in |
PTO Shaft Speed | 540 rpm |
Spline End | 1.375in Z6 |
3-Point Hitch | CAT 1 |
Gearbox Oil Type | 80W90 EP Gear Oil |
Finish | Powder Coating |
Warranty | 1 Year |
Shipping Box | 47 x 45 x 47 in |
Weight (N.W./G.W.) | 970 /992 lbs |
Drum Mower DM53
Engine Power Required | 25-40HP | 3-Point Hitch | CAT 1 |
Working Width | 53 in | Gear Fluid Capacity Of Gear Box | 0.72 gal |
Avg. Cutting Height | 2 in | Gearbox Oil Type | SAE 85W-90 API GL-5 |
Number Of Drums | 2 | Dimensions (L x W x H) | 98x27x39 in |
Number Of Blades | 8 | Finish | Powder Coat Paint Galvanized Steel |
Working Capacity | 3.34 acre/h | Warranty | 1 Year |
PTO Shaft RPM | 540 RPM | Shipping Box | 57x38x23 in |
Driveline Shaft Length | T2S-720-RA1; 28.3-34.2 in | Weight (N.W./G.W.) | 408/474 lbs |
Spline End | 1.375in z6 |
