THE NEWANKER SOLIX F3800PLUS, NEW RELEASE

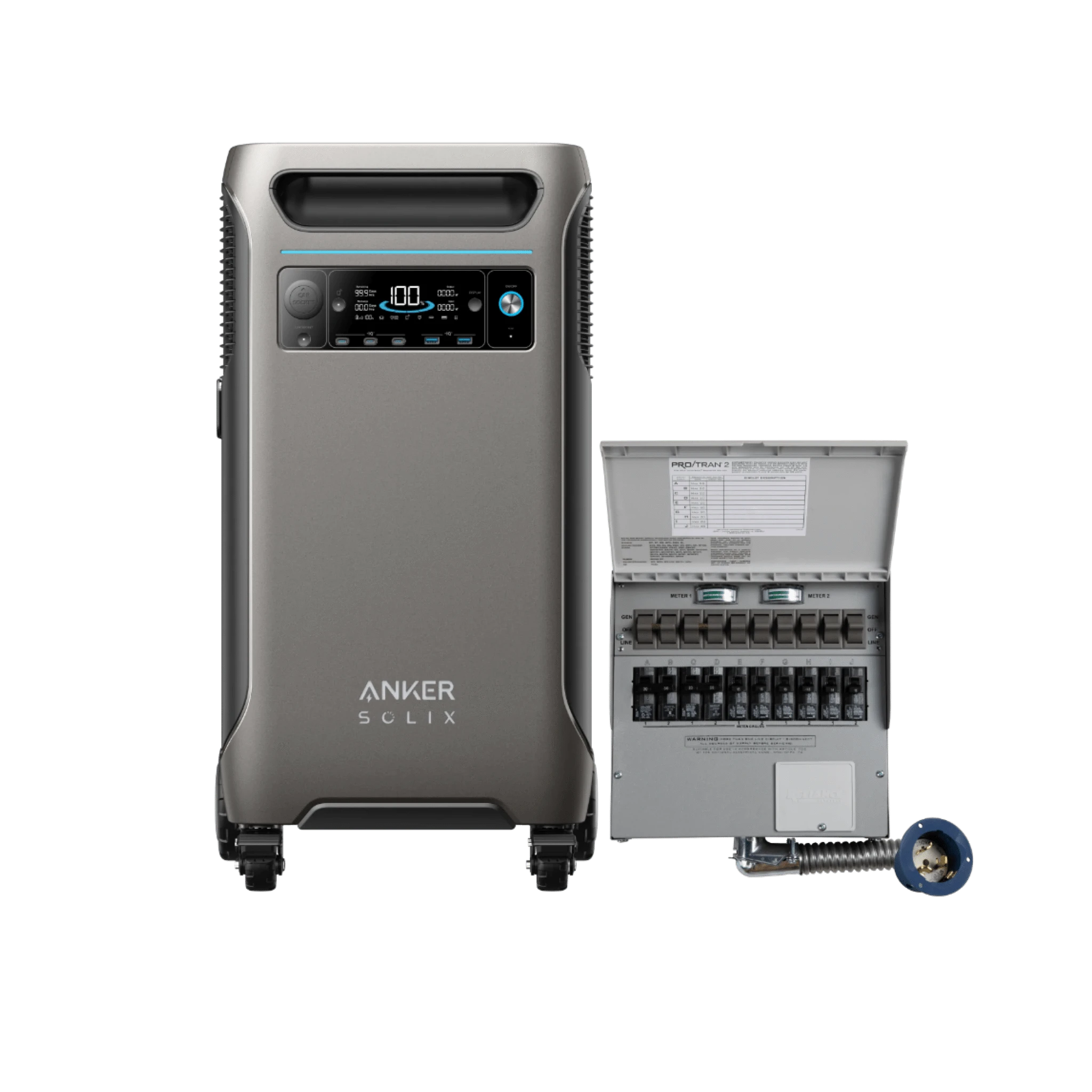

Unlock the full potential of your home with the Anker F3800 PLUS Home Backup Kits. Never be left stranded without power again, as this kit includes the Anker Solix F3800 Plus - a powerful and reliable backup power source. With this kit, you can rest easy knowing that you have a backup plan in place for any unexpected power outages. Experience peace of mind and stay connected with Anker F3800 PLUS Home Backup Kits.
Choose from the 42 Options on this page. Choose the power then choose the solar power.
Create your ideal system by selecting a base option and then adding one of the solar options available. For versatility and convenience, choose portable panels. For a long-lasting solution, consider the rigid panels for a permanent installation.
Specifications of each option at a glance:
NEW KEY FEATURES!:
Unprecedented Solar:Max. 3,200W solar input with dual 11-165V MPPT controllers.
Gas Generator Charging:Compatible with 240V gas generators (6,000W bypass) for extended power outages.
Expandable Capacity:Starts at 3.84kWh, expandable up to 26.9kWh for increased energy storage.
Dual-Voltage AC Output:120V & 240V, 6,000W AC output to power home appliances; expandable up to 12,000W.
Remote Monitoring & Control:Monitor and manage power settings via the Anker app with Wi-Fi/Bluetooth.
Long-lasting Performance:5-year warranty, with an lifespan of 10+ years using EV-grade LFP batteries.
EV & RV Charging:Powers EVs and RVs directly through NEMA TT-30P or L14-30 ports
Expandability
Incredible Expandability - The Anker F3800 PLUS can be connected to another F3800 to double the output wattage to 12,000 watts. The Battery can also be expanded to 53,800 watt-hours of battery backup power (53.8KWH).
Unlock the full potential of your power backup with Anker F3800 PLUS Home Backup Kits. Featuring unparalleled expandability of up to 54KWH and 12000 Watts, the Anker solix f3800 plus offers unmatched power and reliability.
Easily stay connected even on-the-go with the Anker F3800 Home Backup Kits. This portable solution allows you to take your backup power supply with you anywhere you go, ensuring you'll never be without power. Stay prepared and stay connected with the Anker F3800.
Power your Home
Experience uninterrupted power supply for your entire home with the Anker F3800 Home Backup Kits. With a powerful 12,000 Watts and expandable up to 58,000 Watt-hours of battery, you can stay connected and comfortable during power outages. Say goodbye to blackouts and hello to peace of mind.
Anker SOLIX F3800 PLUS Specs:
1 Display Button
2 On/Off Button
3 USB Ports
4 IoT Button
5 Car Socket
6 Car Socket Button
7 NEMA TT-30R AC Output Port
8 L14-30R AC Output Port
9 AC Outlet Button
10 NEMA 5-20R AC Output Port (Left 3 Ports Have UPS)
11 Overcharge Protection (AC Output)
12 HPP & Generator Adapter Port
13 AC Input Port
14 Overcharge Protection (AC Input)
15 Dual Solar Input
16 Expansion Battery Port
17 Anker SOLIX Smart Generator Port
18 Bottom Handle
19 Wheel Brake
20 Wheels
SPECIFICATIONS
BATTERY
Battery Type
LiFePO4 Cell
Cell Part Number
32140FS-15000mAh
Charging Cycle
3000+ (to 80%)
Cell Capacity
51.2Vdc 75Ah/3840Wh
INPUT
AC Input
120V~ 15A Max (< 3hrs) / 12A Max (continuous), 60Hz, L+N+PE
AC Input Power (Charging)
1800W Max
AC Input Power (Bypass Mode)
1440W Max
Solar Panel Input 1
11-165V - 17A Max (1600W Max Each)
Solar Panel Input 2
11-165V - 17A Max (1600W Max Each)
DC Input Port
60V Max, 120A Max
OUTPUT
Car Charger Output
12V - 10A
Home Panel Power Port
6000W Max (AC Input), 6000W Max (AC Output), 120V/240V, L1+L2+N+PE
AC Output Power (Total)
6000W Max
AC Output 1
120V~ 20A Max, 60Hz, 2400W Max
AC Output 2
120V~ 20A Max, 60Hz, 2400W Max
AC Output (NEMA L14-30R)
120V/240V~ 25A Max, 60Hz, 6000W Max
USB-A Output
5V - 2.4A (12W Max Per Port)
USB-C Output
5V - 3A / 9V - 3A / 15V - 3A / 20V - 3A / 20V - 5A (100W Max Per Port)
UPS
UPS
20ms
ENVIROMENTAL OPERATION
Discharging Temperature
-4°F-104°F / -20°C-40°C
Charging Temperature
32°F-104°F / 0°C-40°C
DIMENSION
Size
27.6×15.3×15.6 in / 70.2×38.8×39.5 cm
Net Weight
62kg / 136.7lb
400 Watt Portable Solar Panel Specifications
Rated Power
400W
Open Circuit Voltage
57.6V
Operating Voltage
48V
Operating Current
8.33A
Dimensions (Folded)
35.9 × 25.9 × 1.9 in / 913 × 659 × 47 mm
Dimensions (Unfolded)
102 × 35.9 × 1.2 in / 2,591 × 913 × 30 mm
Net Weight
35.1 lb / 15.9 kg
400 Watt Rigid Solar Panel Specifications
Industry-leading rigid solar panel conversion rate of up to 23%
Sleek, all-black design to complement any house style
IP68 rating ensures solar durability in any weather condition
Up to 10-year solar panel warranty and 25-year linear performance guarantee
Rated Maximum Power (Pmax):
405W
Power Sorting:
0~5W
Voltage at Pmax (Vmp):
31.18V
Current at Pmax (Imp):
12.99A
Open-Circuit (Voc):
37.29V
Short-Circuit Current (Isc):
13.79A
PV Module Classification:
CLASS II
Max System Voltage:
1500V DC (UL)
Max Series Fuse Rating:
30A
Operating Temperature:
-40°C~85°C
Dimensions:
1,722×1,134×30mm/67.8×44.6×1.18in
Pmax/Voc/Isc Tolerance:
±3%
Net Weight:
