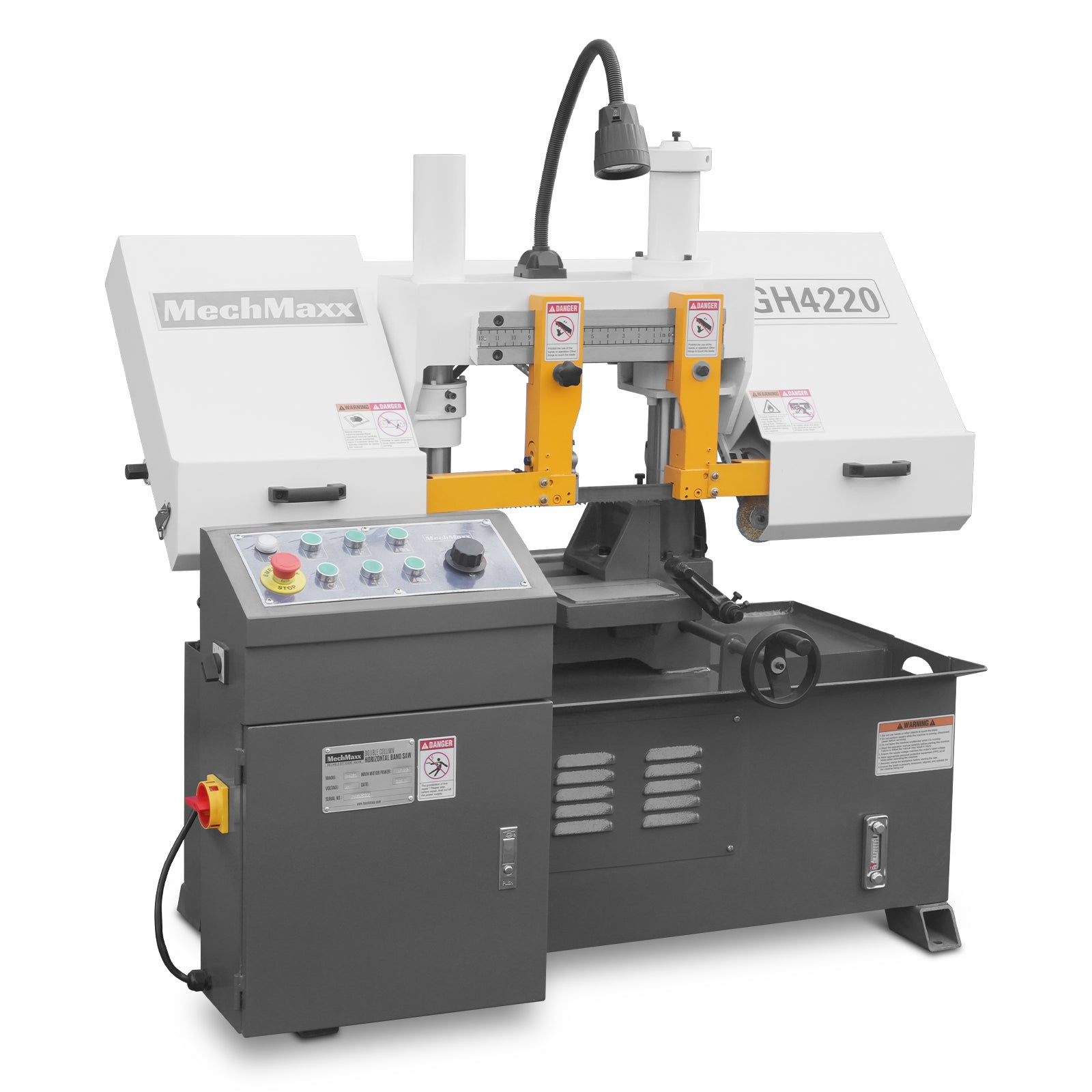

Model | GH4220 |
SKU | 500421 |
Max. Cutting Capacity | ● Ø7-7/8" (200 mm) ■ 7-7/8"×7-7/8" |
Cutting Speed | 119 / 181 ft/min |
Feed Speed | (Hydraulic Variable Speed) |
Blade Size | 110.24"×1.06"×0.035" (2800×27×0.9 mm) |
Workpiece Clamping | Hydraulic |
Blade Tensioning | Mechanical |
Main Motor Power | 0.85 / 1.5 kW (1.14 / 2.01 HP) |
Hydraulic Motor | 0.55 kW |
Coolant Pump Motor | 0.04 kW (40W) |
Drive | Worm bar |
Net Weight | 1014.13 lbs (460 kg) |
Gross Weight | 1212.54 lbs (550 kg) |
