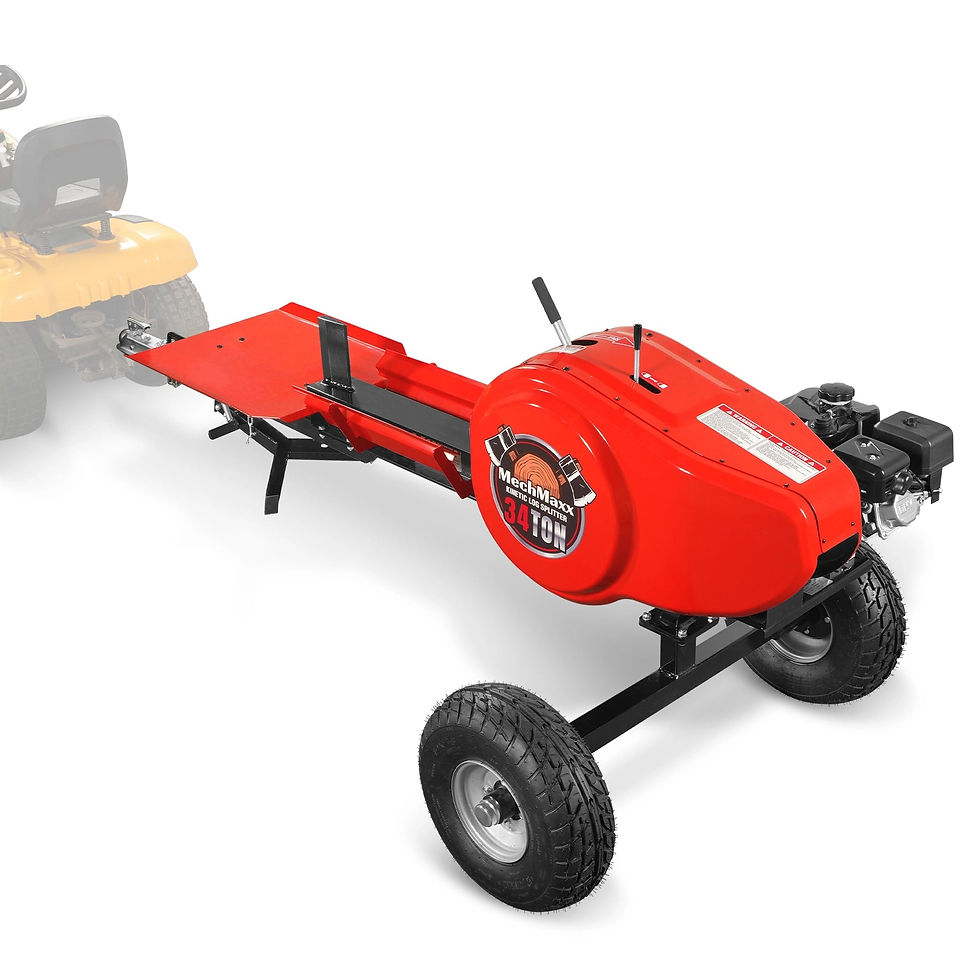

34 Ton Kinetic Log Splitter
Splitting Force | 34 Ton |
Engine | DUCAR DH212 |
Engine Type | Single Cylinder, 4 Stroke, Air-Cooled, OHV |
Displacement | 212 cc; 7 HP |
Belt | A1524Li*1pcs |
Wedge Height | 7in |
Log Length Capacity | 21.5in |
Log Diameter Capacity | 28 in |
Cycle Time | 3 seconds (Approximate） |
Sprocket Rate | 1 : 8 |
Flywheel Max RPM | 450 |
Tire | 19 x 7.0-8 Tubeless |
H-beam Height | 26in |
Wheelbase | 87in |
Towing | Tow Bar With 2 in Coupler |
Product Size (L*W*H) | 110*51*47in |
Packing Size (L*W*H) | 68.5*29.5*27.5in |
Weight (N.W./G.W.) | 545/595 lbs |
Machine Warranty | 1 Year |
Engine Warranty | 1 Year |
Firewood Conveyor
Engine Power | DUCAR DH212 7hp |
Engine Type | Single Cylinder, 4 Stroke, Air-Cooled, OHV |
Conveyor Belt length | 236 in |
Conveyor Belt Wide | 16 in |
Max Discharge Height | 124 in |
Min Discharge Height | 60 in |
Drive System | Hydraulic |
Hydraulic Pump | 5.7 GPM Single Stage Pump |
Hydraulic Fluid Type | AW-46 |
Hydraulic Tank Capacity | 4.2 gal |
Hydraulic Oil Filter Fineness | 10 micron |
Towing | Tow Bar with 2 in Coupler |
Maximum Towing Speed | 45 MPH |
Tires Rims | 13 in |
Tires | 19 in Radial (O. D.) |
Overall Dimensions (LxWxH) | 261x60x63 in |
Finish | Powder Coating |
Package Method | Plywood Case |
Packing Size (LxWxH) | 90x38x33 in |
Warranty | 1year |
Weight (N.W./G.W.)
| 992/1124 lbs |
WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soot, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
