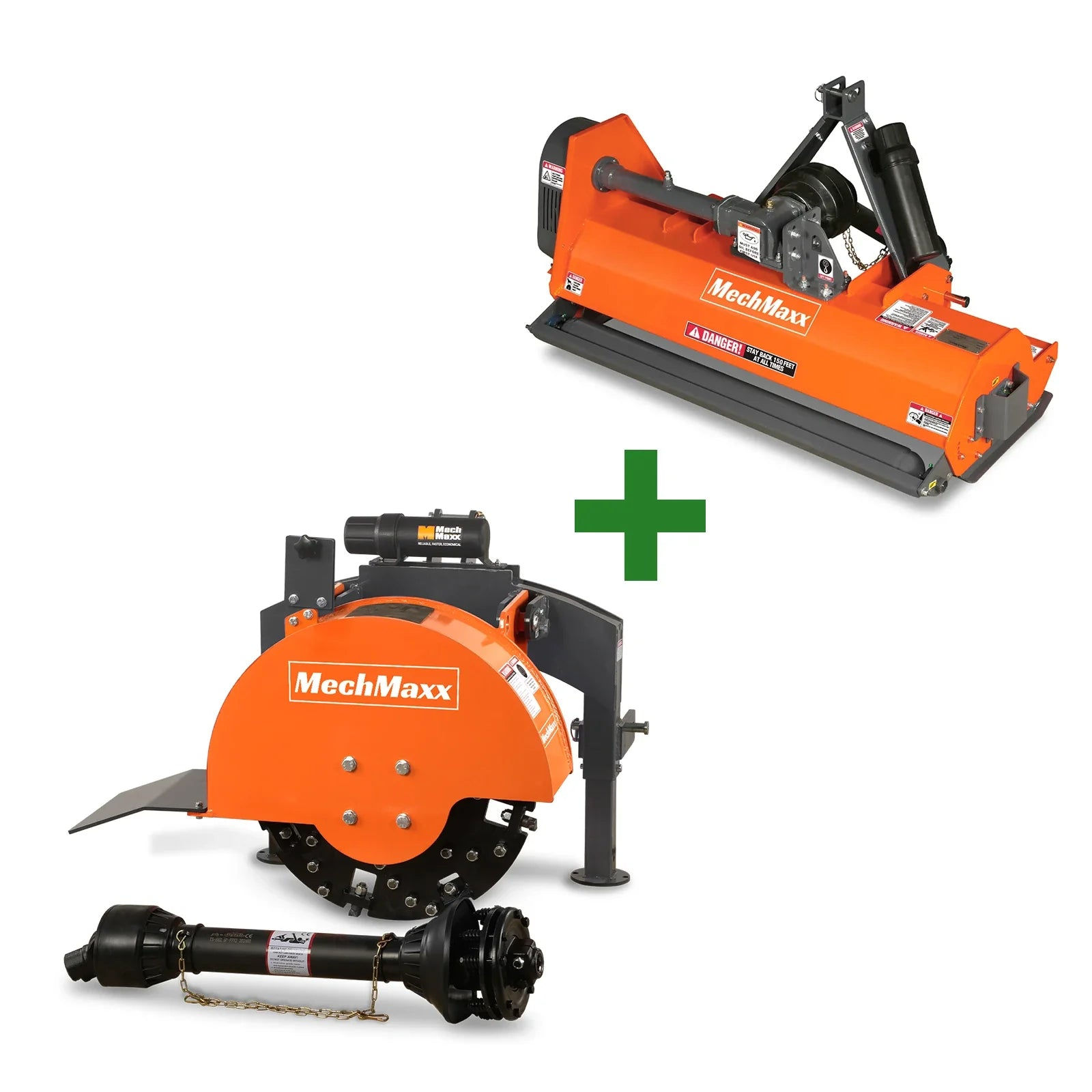

3-Point PTO Stump Grinder
Flywheel Diameter | 24 in | Mounting | 3 Point Hitch Cat. 1 (Quick Attach Compatible) |
Flywheel Thickness | 3/4 in | PTO Input | 540 RPM |
Carbid Tip | 34 PCS | Max. Torque | 1200 N·m |
Carbid Tip Material | YG11C | PTO Shaft Weight | 44 LBS |
Tip Holder Material | 42CrMo | Dimensions | 29 × 37 × 38 in |
PTO HP Required | 15–45 HP | Packing | Iron Frame + Carton |
PTO Shaft (Included Shipping) | 1-3/8” 6 Spline Tractor and Implement Ends PTO Driveline Shaft with Slip Clutch | Weight (N.W/G.W.) | 450/563 LBS
|
Friction Torque Limiter (Slip Clutch) | Included |
|
|
48'' PTO Flail Mower
Engine Power Required | 15-35HP | Blade Speed | 142 ft/s |
Working Width | 48in | Drive Type | Belt drive |
Overall Width | 56in | Number Of Belts | 3 |
Blade Ground Clearance | 0.6in-1.8in | Belt Size | V Belt 13X1041 |
Max. Cutting Diameter | Depends On The Type Of Grass | Drive Belt Tensioner | yes |
Number Of Blades | 20 | Deck Material | 0.16in |
Blade Type | Hammer | Side Plate Material | 0.24in |
Size Of Blades | 3.5 X 3 X 1.6in | PTO Shaft RPM | 540 RPM |
Blade Weight | 0.8lbs | Driveline Shaft Length | T5-LF-31 with shear bolt ；31in- 43in |
Blade （Tines）Material | Cast Steel | Spline End | 1.375in z6 |
Rotor Bearing | SKF bearing | Gearbox Oil Type | 85W-90 |
Rotor Diameter | 3in | Dimensions (L x W x H) | 57 X 30 X 28in |
Rotor Swing Diameter | 11in | Finish | Powder Coating |
Rotor Thickness | 0.3in | Warranty | 1 year |
Rotor Shaft Speed | 2958 rpm | Weight (N.W./G.W.) | 379/470 lbs |
