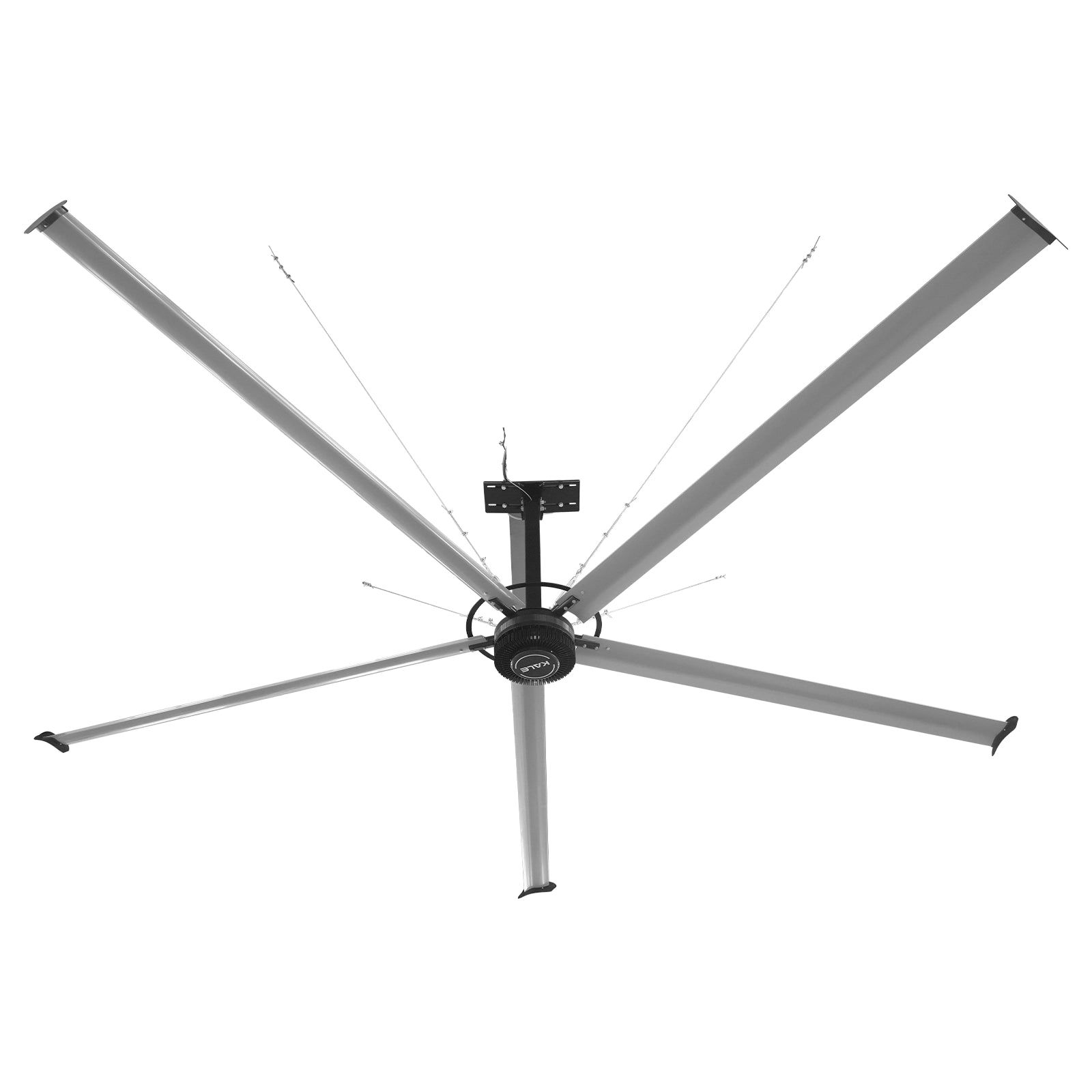

Model | 18FT1PH |
Certifications | cULus,CE,SAA |
Fan Diameter | 18FT |
Number of Blades | 5 |
Cooling Coverage | 10624ft² |
Voltage | 220V ±10% 1Ph |
Full Load Current | 4.2 A |
Fan Watts | 1.0KW |
RPM Range | 10-68 RPM |
Air Flow@Max Speed | 487,343 CFM |
Drive Motor | Permanent Magnet Synchronous Motor |
Speed | Variable Speed |
Drive Type | Direct |
Blade Material | Al-Mg |
Fan Weight | 247LBS |
Noise Level | ＜40dB |
Protection Level(Motor) | IP55 |
Standard Includes | I-Beam Structure Mounting Kits; 59" Extension Tube; Control Cabinet; 131Wire Conduit; 131'Wire Rope; 164' UL Listed Wire. |
Packing Size | Box A:34.6"x31.5"x20.9" Box B:103.9"x13.4"x10.6" |
Gross Weight | Box A: 356 LBS Box B: 156 LBS |
